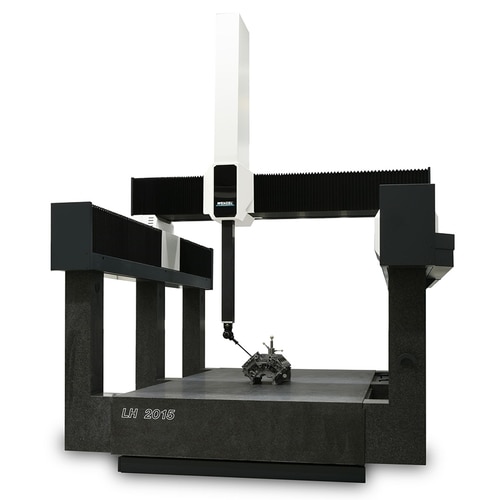

The LH Gantry is a CNC coordinate measuring machine with air bearings in all axes. It offers all the advantages and uses of the LH series and was also specially designed for inspecting large-volume and heavy workpieces. The elevated guides in the Y-axis also ensure maximum stability and stiffness, even during dynamic movements.

product information

Overall, the machine body forms an inherently stable, homogeneous unit with optional integrated active vibration damping, which does not require a separate foundation. Thermal environmental effects that affect the workpiece and the CMM can be corrected by means of automatic temperature compensation (optional). With the optional use of a turntable, even large rotationally symmetrical components can be measured flexibly and precisely. Measuring devices from the LH Gantry series are available in Standard, Premium and Premium-Select accuracy classes.

Areas of application

Stable, reliable and full of dynamics, the LHGantry portal measuring devices can be used universally and flexibly for a wide range of applications. Typical areas of application include the measurement of large engines, large gears or heavy machinery components. The LH GANTRY SERIES also meets the growing demand for e-mobility and the associated new challenges for quality assurance. Examples of applications include the measurement of battery boxes for e-cars or — one size larger — for e-commercial vehicles. WENZEL is thus making its contribution to reducing traffic-related emissions.
