Software WM | Gear Analyzer by WENZEL

WM | Gear, together with the WM | Gear Analyzer, is the innovative software package for data collection, measurement and evaluation of evolutionary gears and bevel gears with coordinate measuring machines.

product information

Users can use the extensive options of the WM | Quartis measurement software (e.g. probe management, measurement of probes, determination of the workpiece position and determination of the rotary table system). Communication between WM | Gear and WM | Gear Analyzer is based on the open GDE standard (VDI/ VDE Guideline 2610).

highlights

• Profile check
  Comprehensive parameterization of measurement tasks. All common profile features can be identified. Profile testing on any number of teeth is possible. Several profile tests on one tooth are possible. Profile corrections can be selected separately for each measurement position (convex shape, head/foot backdrops, target inclination, K-template, design profile).
  ‍

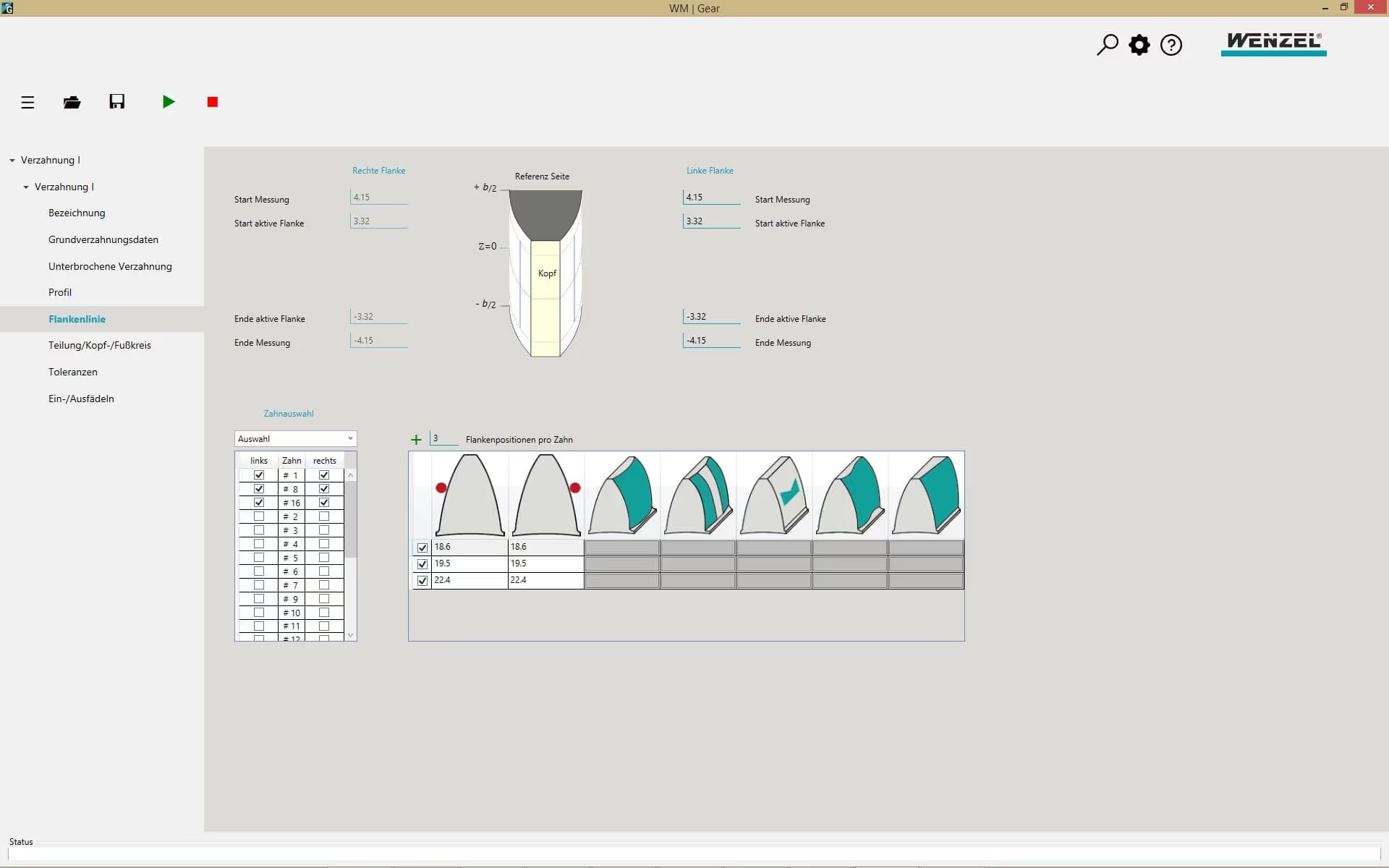

• flank line test
  Comprehensive parameterization of measurement tasks. All common flank line features can be identified. Flank line testing is possible on any number of teeth. Several flank line tests on one tooth are possible. Edge corrections can be selected for each measurement position (convex shape, final reductions, target inclination, K-template, design flank).
  ‍
• Measuring bevel gears
  The following evaluations include straight and
  spiral-toothed bevel gears possible:
  • Target data calculation for straight-toothed bevel gears
  • Import of target data in Klingelnberg and Gleason formats
  • Topographic measurement of bevel gear flanks
  • Division and run-through testing
  ‍
• Ermittung of absolute dimensions

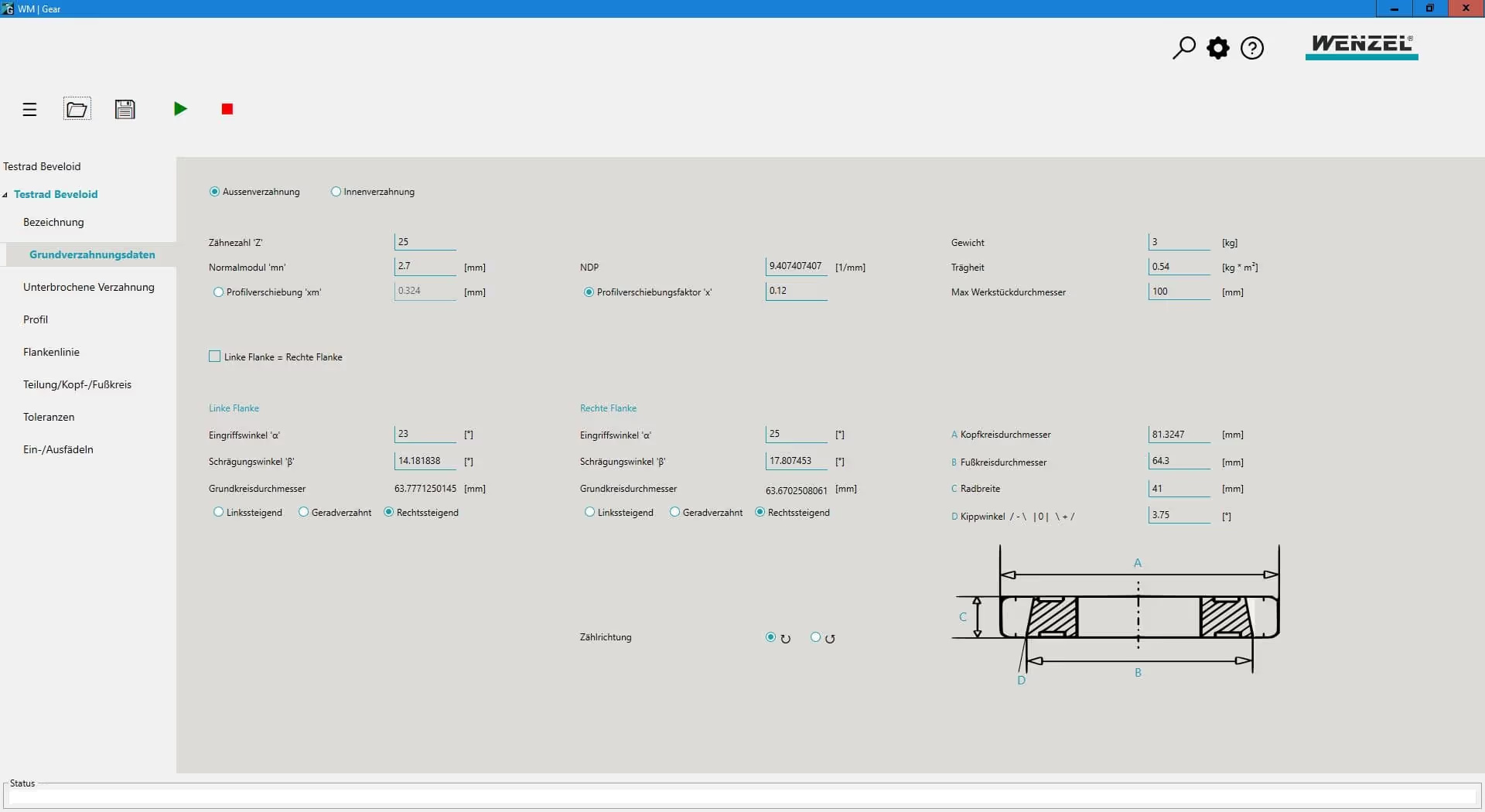

  The following features are possible at up to three different tooth positions:
  • Head circle diameter
  • Base diameter
  • Single ball size
  • Two-ball size
  • Single roll size
  • Two-roll size
  • Tooth width
  • Tooth thickness
  ‍

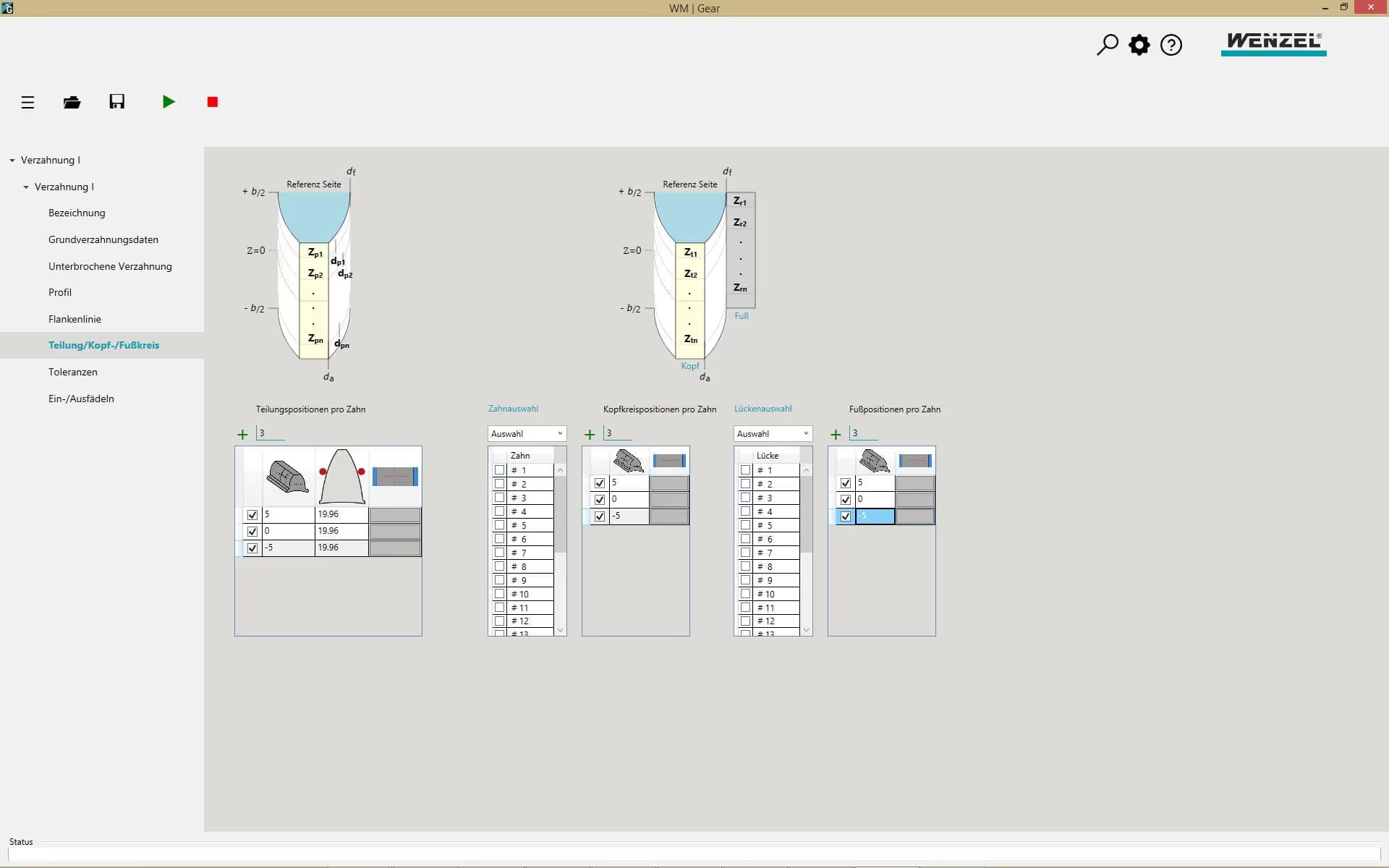

• Division & round test
  Comprehensive parameterization of measurement tasks. All common division and circulation characteristics can be identified. Up to
  three division tests are possible at different tooth positions. Eccentre-corrected evaluation is possible.
