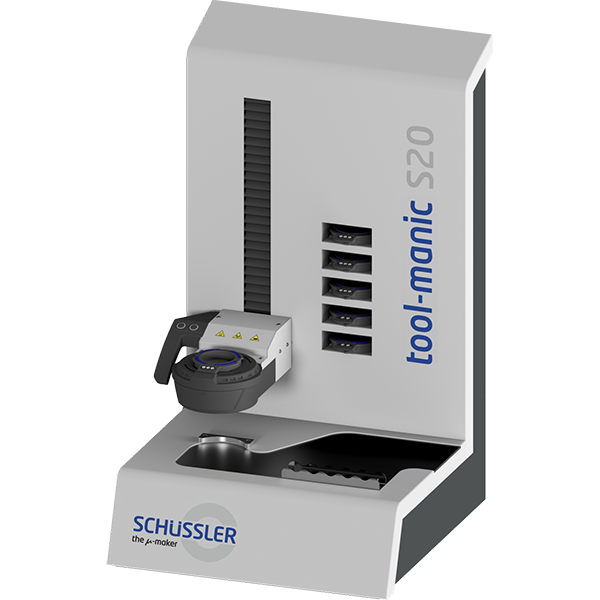

S20Entry level model:

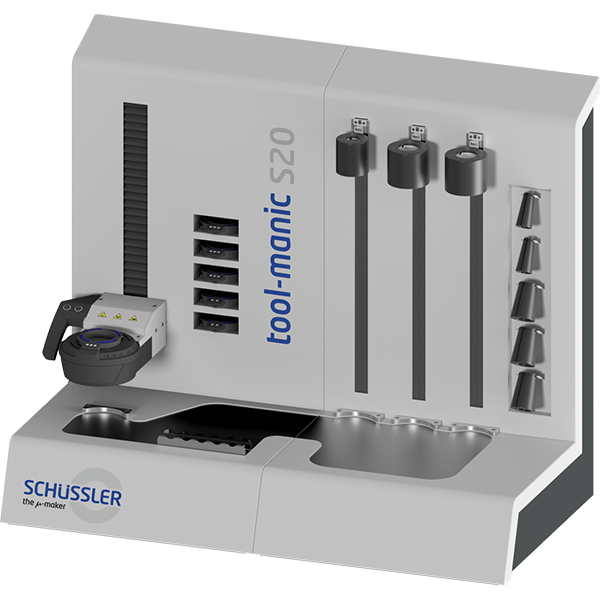

The SCHÜSSLER S20 is the perfect inexpensive entry point for your production into the inductive shrinking technology. The basic version features only the shrink fit device without a cooling unit. That is shrinking technology reduced to pure functionality. The tool-manic S20 can shrink tools up to a length of 420 mm and diameters from 3 to 32mm. Optional expansion with a cooling unit with three contact cooling adapters.

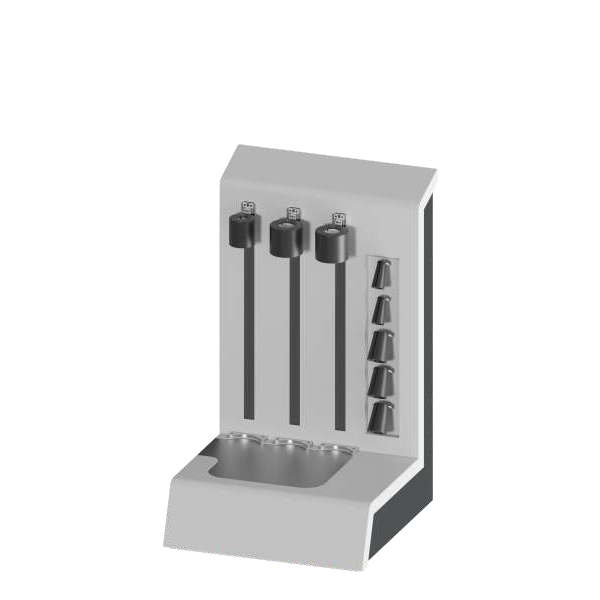

C20Cooling Unit:

The cooling unit offers cooling space for up to 3 shrink fit chucks with different diameters at the same time. The tool holders are cooled with a contact cooling technology, which is gentle on tools and without direct contact to water. This results in no deformation of the chuck and the runout accuracy is preserved. The cooling adapters are kept cool with a continuous flow of water. Due to the modular system the cooling unit can easily be adapted to the tool-manic S20. Because of the identical constructional components, a ground-level connection is guaranteed.

S20CMiddle Class:

The SCHÜSSLER S20C is the perfect mid-range shrink fit unit for your production. Due to the combination of the induction coil and integrated cooling adapters simultaneous shrinking and cooling is possible. The tool-manic S20C can shrink tools up to a length of 420 mm and with diameters from 3 to 32 mm. Cooling is done using contact cooling technology which is gentle on the tools and guarantees high runout accuracy.

The SCHÜSSLER S30 is the premium product of the tool-manic series. Here, the induction coil can optionally be exchanged for an iris coil. With one turn you can set the coil to your desirable size of the shrink fit chuck. The result is the coil fits perfectly to the chuck and only the intended area is heated. In the base cabinet the water cycle cooler and accessories can be stored. It is possible to shrink tools up to a length of 560 mm and with diameters from 3 to 32 mm. Shrink parameters can be set and monitored via a 12,5” workshop-compatible touchscreen, to shrink as efficiently as possible. The tool-manic S30 is also available as a table-top unit without the base cabinet.
