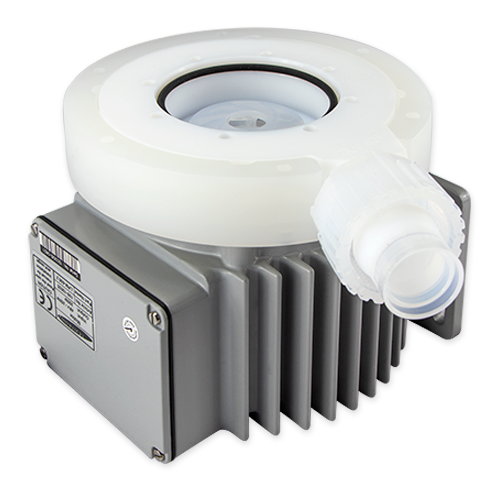

PTM-600 Simultaneous Mixing and Pumping in Microelectronic Wet Applications

The Levitronix^® pump tank mixer PTM-600 is designed for demanding microelectronic wet applications. It combines mixing and pumping in one single unit. Based on active magnetic levitation, the impeller is suspended and driven by the magnetic field of the motor. The wide gap ensures that there is no mechanical contact between moving parts and therefore no wear. There are no bearings to wear out or seals to break down.
The PTM head comes with an impeller, casing bottom, and a flange that mounts to the tank. Levitronix^® provides design specifications of the casing lid to allow seamless integration of your tank with the PTM. All materials are fabricated from chemical-resistant, high-purity fluoropolymer resins.

Max flow75 lpm / 20 gpm

Max diff. pressure3.1 bar / 45 psi

Max liquid Temp90° C / 194° F

Wet materialPFA, PTFE

Tank size200 l / 53 gal
