Software WM | Blade Analyzer by WENZEL
With the WM | Blade Analyzer program, WENZEL presents a new tool for evaluating turbine blade measurements.
product information
In addition to standard parameters such as:
- Maximum thickness
- Inlet and outlet edge radius
- Edge thickness
- leaf length
- Blattwinkel
In addition to standard parameters, the software also supports evaluations according to various manufacturer standards (GE, Safran, Rolls Royce, Pratt & Whitney).

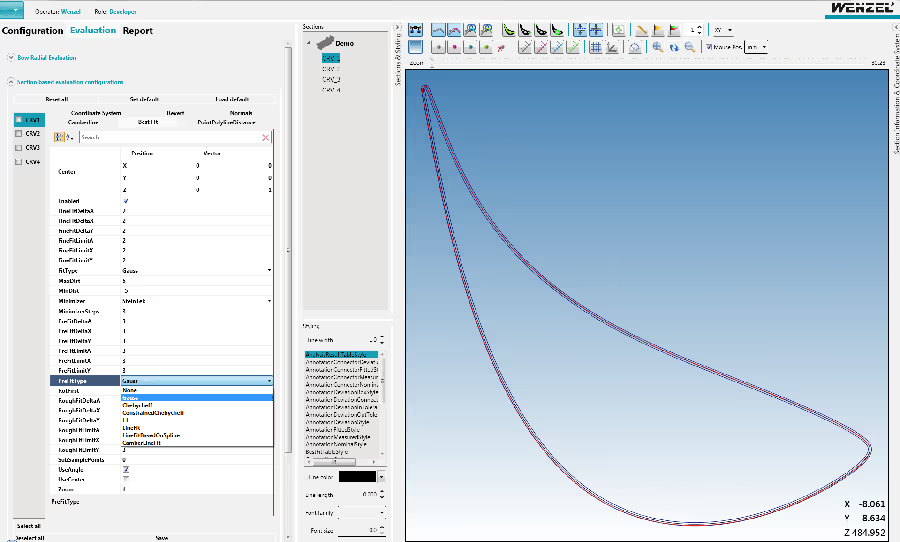

Various best fit algorithms for determining the blade position are just as much a part of the range of services as the evaluation of head and foot tolerances.
A defined workflow makes it easier for the user to create the measurement report. A created report can be saved as a template and used for all further measurements
be used. The measurement data transfer is carried out in a file format. Different formats such as vda, iges, csv and xml are supported here. In addition to the manual
Use of the software can also be automated using command line parameters. The data can be saved in various formats to statistically record the results.
