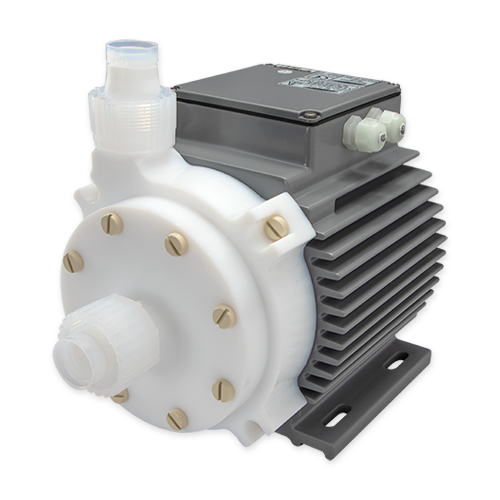

BPS-2000 HP Ultrapure Pump System for Microelectronics Wet Applications

The Levitronix^® BPS-2000 High Pressure is designed for ultrapure processing of delicate fluids in microelectronic wet applications. Based on active magnetic levitation, the pump impeller is suspended and driven by the motor’s magnetic field. The wide gap ensures there is no mechanical contact between moving parts and, therefore, no wear. There are no bearings to wear out or seals to break down. The impeller and casing are both made from chemical-resistant high purity fluoropolymer resins. Fluid flow rate and pressure are precisely controlled by electronically regulating the impeller speed.

Max Flow - 80 lpm / 21 gpm
Max Diff. Pressure - 6.9 bar / 100 psi
Max Liquid Temp - 90 °C / 194 °F
Wet Material - PFA, PTFE
