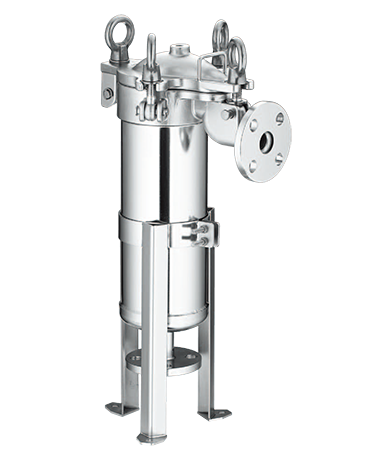

Top-Loading Bag Filter Housing

Top-Loading Bag Filter Housing

Design P. 15kg/cm²      Operating P. 10kg/cm²
Design T. 100˚C Operating T. 75˚C

Material：SUS304 SUS316 SUS316L
O-ring ：EPDM/VITON/NBR/SILICONE
Surface finished：Acid-Washing,Electrolyze and Other unique surface finished.

Features

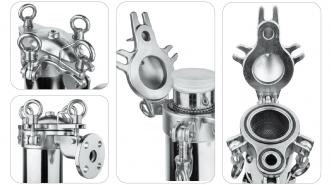

●Patented Top cover with one piece design
●Lifting-cover type could be fasten on the housing, saving the space, convenience and safety
●Independent o-ring connection reducing the leaking and stabling filtration quality
●Flowing from upper side and flush the liquid directly. In this way, would not need the pressure plate and make sure the filtration efficiency, its unique feature for Top-loading bag filter housing.
●Adjustable leg could be adjusted based on site pipeline

Applications

●Water
●Groundwater
●Food Industry
●Beverage Industry
●Environmental Industries
●Electronic Industry
●Machinery oil
●Electroplating Industry
●Petrochemical Industry
●Pool
●Unique liquid filtration
●Industrial wastewater treatment
